@XmlSchema(prefix="cognos", namespace="http://developer.cognos.com/schemas/xmldata/1/")

Package org.apache.juneau.dto.cognos

Cognos Data Transfer Objects

See: Description

Class Summary

Class	Description
Column	Represents a meta-data column in a Cognos dataset.
DataSet	Represents a Cognos dataset.
DataSet.Row	Represents a row of data.

Package org.apache.juneau.dto.cognos Description

Cognos Data Transfer Objects

Table of Contents

1. Cognos serialization support

2. Cognos parsing support

1 - Cognos serialization support

The DataSet class is a DTO used to convert POJO models directly to Cognos-XML.

Because of the nature of the Cognos XML syntax, only 2-dimensional POJO data structures can be serialized to Cognos-XML.

For example...

• Collection<Bean>
• Collection<Map>
• MyBean[]
• HashMap[]

Example:

The following example shows how to generate Cognos-XML from a POJO. The example uses the AddressBook sample POJO. It should be noted that since the AddressBook class is a subclass of LinkedList, it fulfills the requirement of being a tabular data structure.

// Create our POJO with some entries. AddressBook addressBook = new AddressBook(); addressBook.add( new Person("Barack Obama", "Aug 4, 1961", new Address("1600 Pennsylvania Ave", "Washington", "DC", 20500, true), new Address("5046 S Greenwood Ave", "Chicago", "IL", 60615, false) ) ); addressBook.add( new Person("George Walker Bush", "Jul 6, 1946", new Address("43 Prairie Chapel Rd", "Crawford", "TX", 76638, true), new Address("1600 Pennsylvania Ave", "Washington", "DC", 20500, false) ) ); // Define the Cognos metadata Column[] items = { new Column("name", "xs:String", 255), new Column("age", "xs:int"), new Column("numAddresses", "xs:int") .addPojoSwap( new PojoSwap<Person,Integer>() { @Override public Integer swap(BeanSession session, Person p) { return p.addresses.size(); } } ) }; // Create the Cognos DataSet object DataSet ds = new DataSet(items, addressBook, BeanContext.DEFAULT); // Serialize it to XML String xml = XmlSerializer.DEFAULT_SQ.serialize(ds);

When run, this code produces the following XML...

<?xml version='1.0' encoding='UTF-8'?> <c:dataset xmlns:c='http://developer.cognos.com/schemas/xmldata/1/'> <c:metadata> <c:item name='name' type='xs:String' length='255'/> <c:item name='age' type='xs:int'/> <c:item name='numAddresses' type='xs:int'/> </c:metadata> <c:data> <c:row> <c:value>Barack Obama</c:value> <c:value>52</c:value> <c:value>2</c:value> </c:row> <c:row> <c:value>George Walker Bush</c:value> <c:value>67</c:value> <c:value>2</c:value> </c:row> </c:data> </c:dataset>

Other data formats

The following shows examples of what this data structure looks like when serialized to other formats:

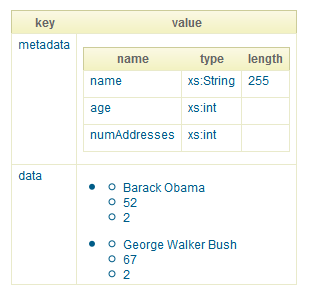

HTML

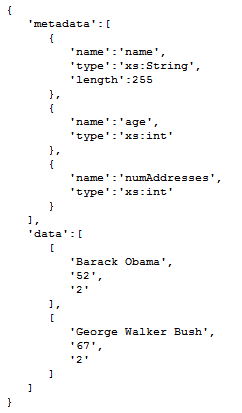

JSON

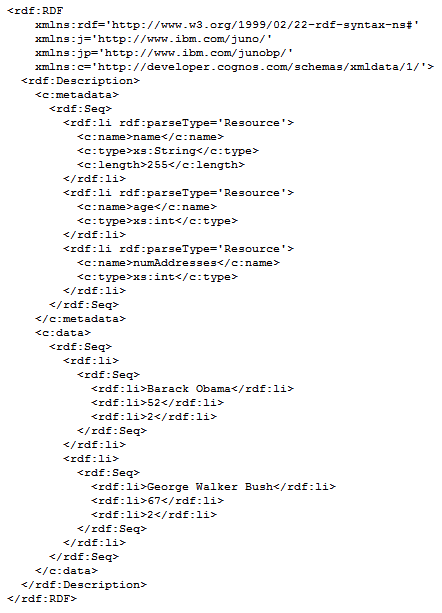

RDF/XML

2 - Cognos parsing support

The DataSet class can be reconstructed from Cognos/XML using one of the standard XML parsers.

Example:

// Parse XML back into original DataSet DataSet ds = XmlParser.DEFAULT.parse(xml, DataSet.class);
